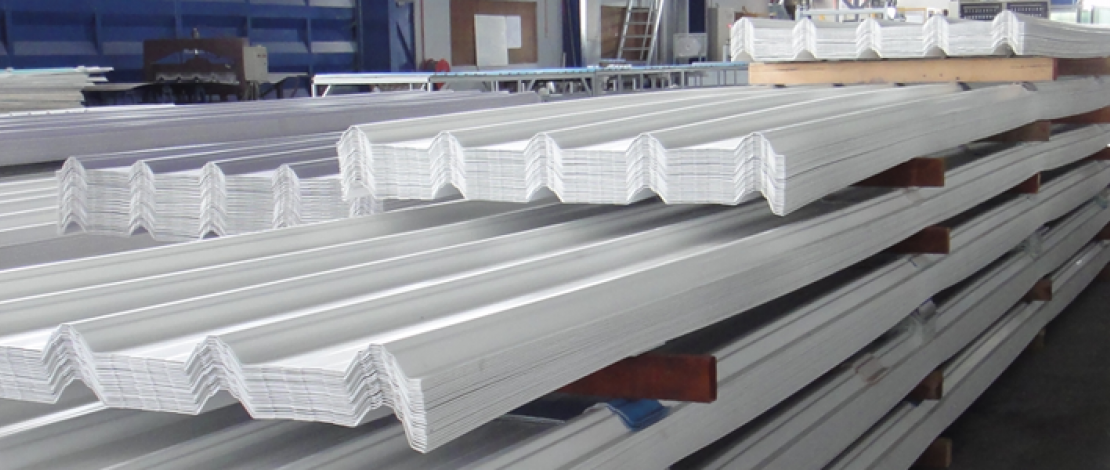

Multi Layer Rigid Roofing
| Property | Results | Standard |
|---|---|---|
| Tensile Strength: coloured 3 layers | 27-31 Mpa | ISO 527 |
| Flexural Strength: coloured 3 layers | 45-55 Mpa | ISO 178 |
| Elongation | 145% | ASTM D638-03 |
| Impact Strength (ZOD) | 125.2 j/m | ASTM D256-08 |
| Impact Strength (charpy) | 50-60 j/m2 | ISO 179 |
- Light weight - 3.5kg/m2
- Chemical resistance - VPN EurolineTm is steady against the action of acids, alkalis, salts and solvents
- Excellent thermal insulation - Heat conductivity of VPN EurolineTM - 0.104 W/m2c2
- Sound insulation - VPN EurolineTM provides excellent protection from the sound of rain, hail and other external noises
- wide range of usage temperatures - 40c2 to + 70c2
- Frost resistance - VPN EurolineTM withstands over 100 freezing / thawing cycles
- Colorfastness - 8 points (BWS)
- Weather resistance - VPN EurolineTM can be used in extreme weather conditions (i.e. storms, hurricanes, hail)
- Durability - Material is guaranteed for its performance for the period of not less than 10 years
- Fire resistance - VPN EurolineTM is a non-combustible material (ASTM D635-06), VPN EurolineTM belongs to class 1 group of construction materials according to BS 476 part7
- Elasticity and flexibility - VPN EurolineTM allows construction of arch type roofs and curvilinear fences with minimum radius of 6m
- High Strength properties
- Installation efficiency - overlapping losses do not exceed 7%, Material is not sensitive to scratches, blow impact and faling from heights, it can be easily cut, drilled and sawn
- Skylights- VPN EurolineTM is available in transparent / translucent form of matching profile
